In an area stretching from Africa to South America, Earth’s magnetic field is gradually weakening. This strange behavior has geophysicists puzzled and is causing technical disturbances in satellites orbiting Earth. Scientists are using data from ESA’s Swarm constellation to improve our understanding of this area known as the “South Atlantic Anomaly.”
Earth’s magnetic field is vital to life on our planet. It is a complex and dynamic force that protects us from cosmic radiation and charged particles from the Sun. The magnetic field is largely generated by an ocean of superheated, swirling liquid iron that makes up the outer core around 3,000 km beneath our feet. Acting as a spinning conductor in a bicycle dynamo, it creates electrical currents, which in turn, generate our continuously changing electromagnetic field.
Earth’s magnetic field is losing its strength
This field is far from static and varies both in strength and direction. For example, recent studies have shown that the position of the north magnetic pole is changing rapidly. Over the last 200 years, the magnetic field has lost around 9 percent of its strength on a global average. A large region of reduced magnetic intensity has developed between Africa and South America and is known as the South Atlantic Anomaly.
From 1970 to 2020, the minimum field strength in this area has dropped from around 24,000 nanoteslas to 22,000, while at the same time the area of the anomaly has grown and moved westward at a pace of around 20 km per year. Over the past five years, a second center of minimum intensity has emerged southwest of Africa — indicating that the South Atlantic Anomaly could split up into two separate cells.
The below video: The South Atlantic Anomaly refers to an area where our protective shield is weak. This animation shows the magnetic field strength at Earth’s surface from 2014-2020 based on data collected by the Swarm satellite constellation. (Credit: Division of Geomagnetism, DTU Space)
Earth’s magnetic field is often visualized as a powerful dipolar bar magnet at the center of the planet, tilted at around 11° to the axis of rotation. However, the growth of the South Atlantic Anomaly indicates that the processes involved in generating the field are far more complex. Simple dipolar models are unable to account for the recent development of the second minimum.
The below video: The South Atlantic Anomaly refers to an area where our protective shield is weak. White dots on the map indicate individual events when Swarm instruments registered the impact of radiation from April 2014 to August 2019. The background is the magnetic field strength at the satellite altitude of 450 km. (Credit: Division of Geomagnetism, DTU Space)

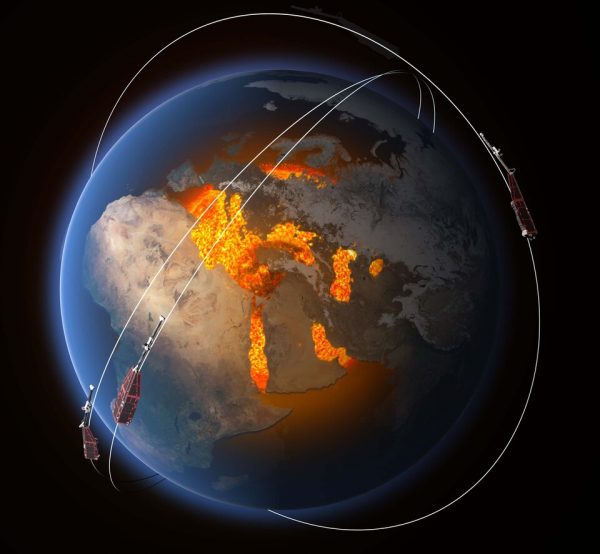

Scientists from the Swarm Data, Innovation, and Science Cluster (DISC) are using data from ESA’s Swarm satellite constellation to better understand this anomaly. Swarm satellites are designed to identify and precisely measure the different magnetic signals that make up Earth’s magnetic field. Jürgen Matzka, from the German Research Centre for Geosciences, said:
“The new, eastern minimum of the South Atlantic Anomaly has appeared over the last decade and in recent years is developing vigorously. We are very lucky to have the Swarm satellites in orbit to investigate the development of the South Atlantic Anomaly. The challenge now is to understand the processes in Earth’s core driving these changes.”
It has been speculated whether the current weakening of the field is a sign that Earth is heading for an imminent pole reversal — in which the north and south magnetic poles switch places. Such events have occurred many times throughout the planet’s history and even though we are long overdue by the average rate at which these reversals take place (roughly every 250,000 years), the intensity dip in the South Atlantic occurring now is well within what is considered normal levels of fluctuations.
At the surface level, the South Atlantic Anomaly presents no cause for alarm. However, satellites and other spacecraft flying through the area are more likely to experience technical malfunctions as the magnetic field is weaker in this region, so charged particles can penetrate the altitudes of low-Earth orbit satellites.
The mystery of the origin of the South Atlantic Anomaly has yet to be solved. However, one thing is certain: Magnetic field observations from Swarm are providing exciting new insights into the scarcely understood processes of Earth’s interior.
Provided by: European Space Agency [Note: Materials may be edited for content and length.]
