Fermilab Achieves Record Field Strength for Accelerator Magnet

The Fermilab magnet.
Fermilab recently achieved a magnetic field strength of 14.1 teslas at 4.5 kelvin on an accelerator steering magnet — a world record. (Image: via Thomas Strauss)

To build the next generation of powerful proton accelerators, scientists need the strongest magnets possible to steer particles close to the speed of light around a ring. For a given ring size, the higher the beam’s energy, the stronger the accelerator’s magnets need to be to keep the beam on course.

Scientists at the Department of Energy’s Fermilab have announced that they achieved the highest magnetic field strength ever recorded for an accelerator steering magnet, setting a world record of 14.1 teslas, with the magnet cooled to 4.5 kelvins or minus 450°F. The previous record of 13.8 teslas, achieved at the same temperature, was held for 11 years by Lawrence Berkeley National Laboratory.

That’s more than a thousand times stronger than the refrigerator magnet that’s holding your grocery list to your refrigerator.

The achievement is a remarkable milestone for the particle physics community, which is studying designs for a future collider that could serve as a potential successor to the powerful 17-mile-around Large Hadron Collider operating at CERN laboratory since 2009. Such a machine would need to accelerate protons to energies several times higher than those at the LHC.

And that calls for steering magnets that are stronger than the LHC’s, about 15 teslas. Fermilab scientist Alexander Zlobin, who leads the project at Fermilab, said:

The success of a future high-energy hadron collider depends crucially on viable high-field magnets, and the international high-energy physics community is encouraging research toward the 15-tesla niobium-tin magnet. At the heart of the magnet’s design is an advanced superconducting material called niobium-tin.

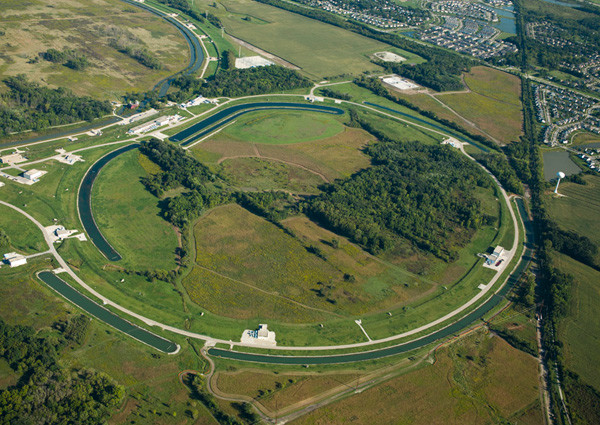

The success of a future high-energy hadron collider depends crucially on viable high-field magnets, and the international high-energy physics community is encouraging research toward the 15-tesla niobium-tin magnet.
The success of a future high-energy hadron collider depends crucially on viable high-field magnets, and the international high-energy physics community is encouraging research toward the 15-tesla niobium-tin magnet. (Image: via Fermilab)

The electrical current flowing through the material generates a magnetic field. Because the current encounters no resistance when the material is cooled to a very low temperature, it loses no energy and generates no heat. All of the current contributes to the creation of the magnetic field. In other words, you get lots of magnetic bang for the electrical buck.

The strength of the magnetic field depends on the strength of the current that the material can handle. Unlike the niobium-titanium used in the current LHC magnets, niobium-tin can support the amount of current needed to make 15-tesla magnetic fields. But niobium-tin is brittle and susceptible to break when subject to the enormous forces at work inside an accelerator magnet.

The Fermilab team’s magnet design

So the Fermilab team developed a magnet design that would shore up the coil against every stress and strain it could encounter during operation. Several dozen round wires were twisted into cables in a certain way, enabling it to meet the requisite electrical and mechanical specifications. These cables were wound into coils and heat-treated at high temperatures for approximately two weeks, with a peak temperature of about 1,200°F, to convert the niobium-tin wires into a superconductor at operating temperatures.

The team encased several coils in a strong innovative structure composed of an iron yoke with aluminum clamps and a stainless-steel skin to stabilize the coils against the huge electromagnetic forces that can deform the brittle coils, thus degrading the niobium-tin wires.

The Fermilab team's niobium-tin can support the amount of current needed to make 15-tesla magnetic fields.
Unlike the niobium-titanium used in the current LHC magnets, the Fermilab team’s niobium-tin can support the amount of current needed to make 15-tesla magnetic fields. (Image: Fermilab)

The Fermilab group took every known design feature into consideration, and it paid off. Soren Prestemon, a senior scientist at Berkeley Lab and director of the multilaboratory U.S. Magnet Development Program, which includes the Fermilab team, said:

And the Fermilab team is geared up to make their mark in the 15-tesla territory. Zlobin added:

Over the next few months, the group plans to reinforce the coil’s mechanical support and then retest the magnet this fall. They expect to achieve the 15-tesla design goal. And they’re setting their sights even higher for the further future. Zlobin said:

It doesn’t stop there. Zlobin says they may be able to design steering magnets that reach a field of 20 teslas using special inserts made of new advanced superconducting materials.

Call it a field goal.

Provided by:  Leah Hesla, Fermi National Accelerator Laboratory  [Note: Materials may be edited for content and length.]
